60×90 cm UV flatbed — CMYK+White+Varnish in one pass, flat & cylindrical items

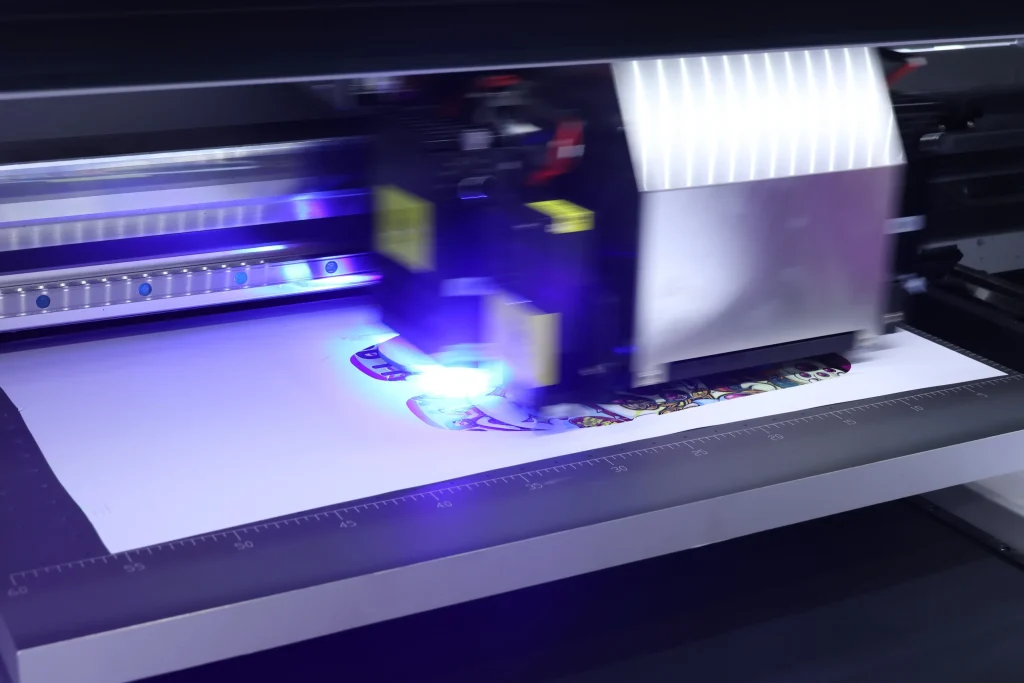

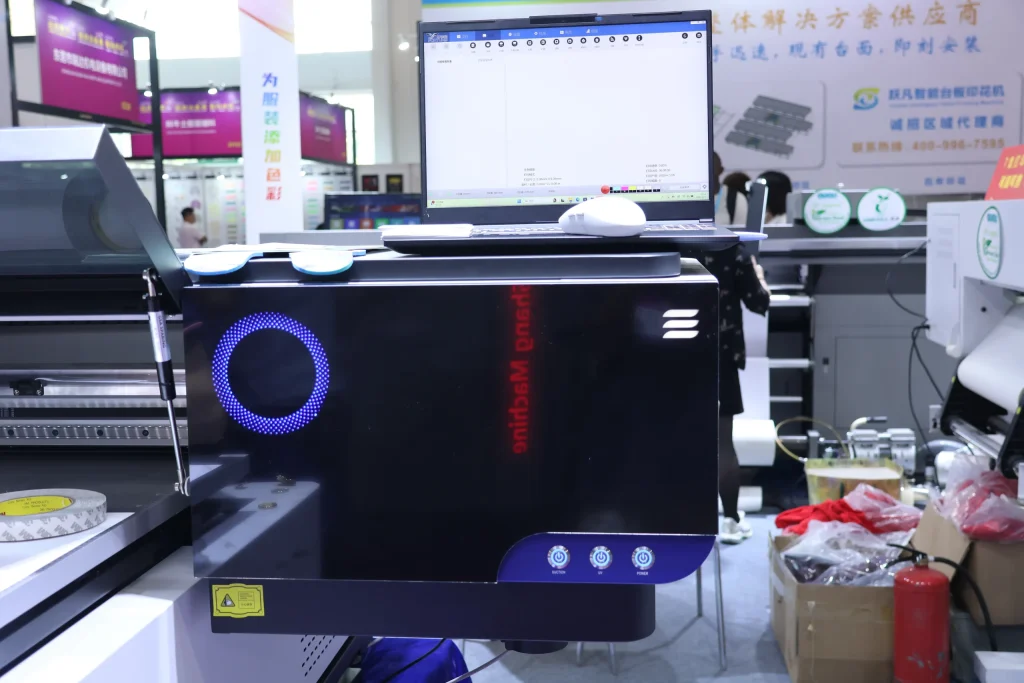

HY-6090 UV Flatbed Printer

Print CMYK+White+Varnish in one pass with a 3-head layout (engine options: Epson I3200-U1 / I1600-U1). 600×900 mm bed, auto-lift cleaning station, rotary tooling for Ø30–120 mm bottles. LED-UV curing enables gloss/matte/frost/faux-gold effects.
Request a Demo
Download Specifications

Product Features & Benefits

Why Choose H·EASY HY-6090 UV Flatbed Printer

※ Actual equipment configuration shall prevail.

3-Head CMYK+W+V Printing

3-head CMYK+W+V in one pass—high-opacity white, vivid color, protective/spot varnish.

Dual Printhead Platforms

Choose I3200-U1 or I1600-U1 to balance throughput and cost.

Transparent Real Productivity

Throughput at a glance—9/7/5 m²/h (I3200-U1) vs 5/4/3 m²/h (I1600-U1).

Cylindrical Printing Support (Ø30–120 mm)

Rotary tooling prints cylinders Ø30–120 mm—cups, bottles, vape tanks, etc.

Wide Material Compatibility

Prints on glass, acrylic, wood, ceramics, metal sheets, PVC/plastics, 3C casings (primer when required).

Easy Operation & Maintenance

Auto-lift cleaning, low-heat LED-UV, standard file formats; friendly environment window 20–28 °C / 40–60%RH.

3-Head Architecture · One-Pass CMYK+W+V

• Independent color/white/varnish channels deliver high white opacity, sharp lines, and vivid colors, with varnish available for full or spot gloss.

• 720×1800 dpi resolution ensures crisp small text and clean texture edges.

• Supports multiple surface finishes including gloss, matte, satin, and metallic effects.

Flat & Cylinder in One · 60×90 Bed + Ø30–120 Rotary

• 600×900 mm flatbed—ideal for gift boxes, nameplates, signage, and small-format packaging.

• Rotary attachment for cylindrical objects Ø30–120 mm, ensuring concentric stability and precise alignment.

• Auto-lift cleaning station reduces manual intervention and minimizes downtime.

LED-UV Curing · Process Consistency

• LED-UV curing with low energy consumption, slow light decay, and excellent performance on heat-sensitive materials.

• Recommended environment: 20–28 °C / 40–60% RH; primers or coatings advised for improved adhesion and scratch resistance.

• USB 2.0 data interface; compatible with common RIP software (PhotoPRINT / Onyx / Caldera / ColorGate*).

Application Scenarios & Effect Demonstrations

Where H·EASY HY-6090 Excels

ensuring precise color reproduction, strong adhesion, and durable prints on a wide range of rigid and flexible materials.

a5e464f56ff09714dbe01aa88e16dd9327de273c67a8ddeb489bfdd6f90db4f1
6dfaaab992bbb18a60a767ca50e46ac69b983563fbbfe8a282b730ace5cb8645
3C products & nameplates
Gift boxes
Signage
Golf accessories
Cups & bottles
3C products & nameplates
gift boxes
signage
golf accessories

H·EASY Technical Support

Through cooperation with world famous print head manufacturers and software suppliers, we integrate sophisticated and practical technology into our fabric printers.

One-Year Warranty (Extendable)

Standard 12-month coverage with optional 24/36-month extended care;

Installation & Onboarding

Step-by-step video and PDF guide for setup, calibration, and your first print.

Knowledge Base & Troubleshooting Docs

Quick guides for common issues with checklists and fixes.

Online Remote Guidance

Engineers provide real-time diagnosis and tuning via WhatsApp/Zoom/AnyDesk.

Frequently Asked Questions (FAQ)

3 printheads (CMYK + White + Varnish); available with I3200-U1 or I1600-U1 platforms.
600 × 900 mm; standard Z-axis height 100 mm, optional 150 mm.
Yes. Flat materials are printed directly; cylindrical objects (Ø30–120 mm) use a rotary fixture for stable alignment.
I3200-U1: 9 / 7 / 5 m²/h; I1600-U1: 5 / 4 / 3 m²/h (4 / 6 / 8-pass modes).
UV ink with LED-UV curing; supports white ink and varnish (optional primer or special effects).
TIF / PDF / JPG / EPS / AI; USB 2.0 connection.
220 VAC ±10%, single phase, 50/60 Hz; approx. 2.8 kW; machine size 1.68 × 1.64 × 1.02 m.
Both options are available. Full varnish provides overall gloss and scratch resistance, while spot varnish highlights logos, graphics, or creates matte effects.
In most cases, yes. Select the appropriate primer or surface treatment according to the material and follow the consumable’s TDS guidelines.
Use a dedicated rotary jig, adjust concentricity and height, and confirm positioning with guide lines or small test samples.
Optimize UV curing energy and pass count, use compatible primers or varnishes, and maintain proper surface cleaning and tension control.
Ensure proper ventilation and exhaust, comply with UV and ozone safety standards, and maintain an environment of 20–28 °C / 40–60% RH for stable performance.

Before each shift: perform a nozzle test and clean the platform/jigs.

After each shift: clean and cap printheads, wipe the wiper and capping station, and regularly check the UV lamp and cooling system.

15–25 days standard (custom 25–35). Packed with wooden crate + anti-shock + moisture protection. Sea/air/express available with full documentation.

Manuals/videos + remote commissioning for first prints & color setup; optional on-site install/training.

12-month machine warranty (printheads/consumables excluded). Factory parts support; post-warranty parts at factory price.

Yes—send your fabric or use ours. We return prints with recommended inks & pre/heat-fix parameters for fast ramp-up.

Available—per-call service and annual maintenance plans (inspection, calibration, consumables advisory).

Yes—we advise and connect pre-treat, steaming/washing/drying, heat-fix/set equipment for turnkey production.

H-1816: silk fashion, lightweight womenswear, scarves/shawls. H-2632: wide home textiles (curtains, bedding, upholstery) for long-run production.

HY-6090 UV Specifications
