Specifically designed for high-volume roll-to-roll direct-to-fabric printing
H·EASY H-2632 2.6 m Ultra-Wide Direct-to-Fabric Printer
H-2632 is designed for industrial roll-to-roll (R2R) production. Equipped with 32 Ricoh Gen6 industrial printheads, a 2.6m effective printing width, and an integrated ink agitation + cleaning/heating system, it ensures stable, high-speed delivery even for large production orders.
Supports reactive/disperse/acid/fluorescent dyes (≤12 colors), up to 2400 DPI, compatible with Neostampa/Texprint RIP. Three-layer offline hot-air shirt with constant tension fabric feed ensures long-run consistency and batch color matching.
Product Features & Benefits
Why Choose H·EASY Direct-to-Fabric (R2R) Printing
Industrial-grade printhead · High-speed output · 1.8 m roll-to-roll · Stable tension · Automatic maintenance · Low TCO
Gen6 Industrial Printhead
Features Ricoh Gen6 industrial printheads (scalable from 4 to 16/32 nozzles) with variable dot sizes (approx. 5–15 pl), delivering sharper fine gradations and small text edges, along with extended lifespan and enhanced stability.
650 m²/h high-speed production capacity
For medium to large-volume orders, 2-pass production achieves approximately 650 m²/h, while 3-pass production reaches about 450 m²/h. With 7×24 continuous operation, we maintain stable delivery schedules even during peak order periods.
2.6 m roll-to-roll stability
2,600 mm effective web width, constant tension feeding/rewinding + automatic web guiding/wrinkle prevention, adhesive-backed conveyor belt for enhanced stability, suitable for knits, wovens, and stretch fabrics.
Multi-process ink compatibility
Supports reactive/disperse/pigment/acid inks, colorfastness ≥4, provides ICC color management and environmental reports.
Online Pre-Baking/Color Fixing (Optional)
Multi-stage hot air + IR combination reduces process steps and turnaround time; can interface with external pre-treatment/cleaning lines.
Automatic Maintenance · Low TCO
Automatic cleaning and self-circulation minimize downtime; integrated RIP with one-click color registration and variable data printing; remote diagnostics + one-year warranty.

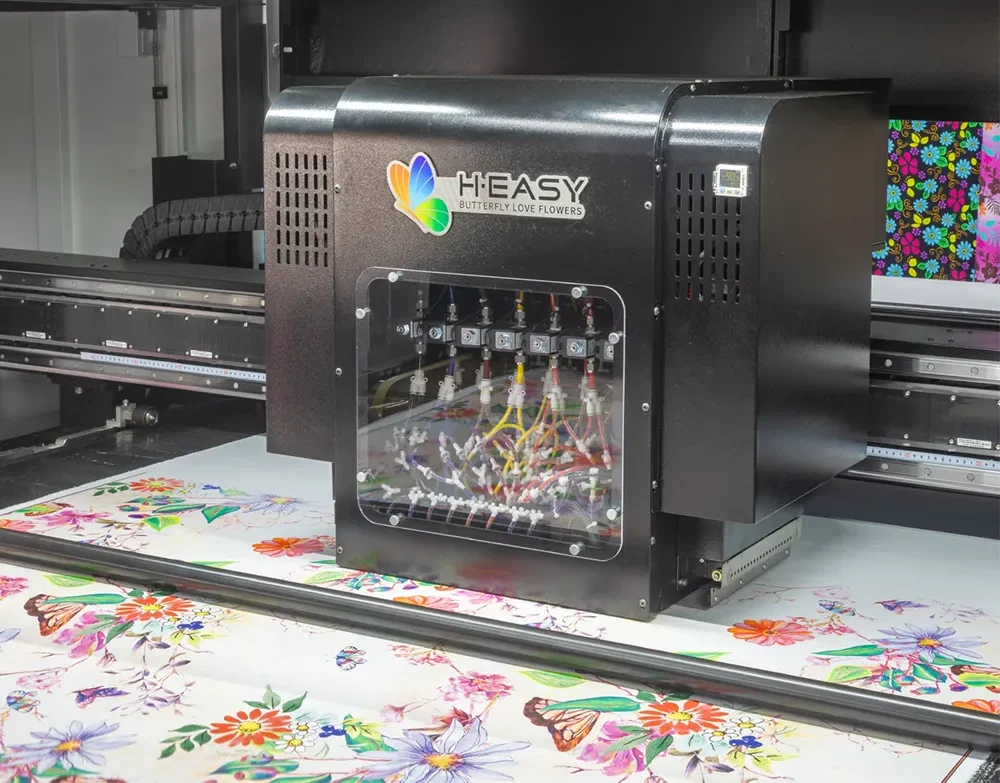

Industrial Printheads · Stable Tone · Sharp Details
32 Ricoh Gen6 printheads (5–15 pl), grayscale jetting and accurate drop placement.
Continuous white-ink circulation with automatic purging & capping to reduce clogging.
Up to 1200 × 1200 dpi industrial resolution for smooth gradients and crisp micro text.

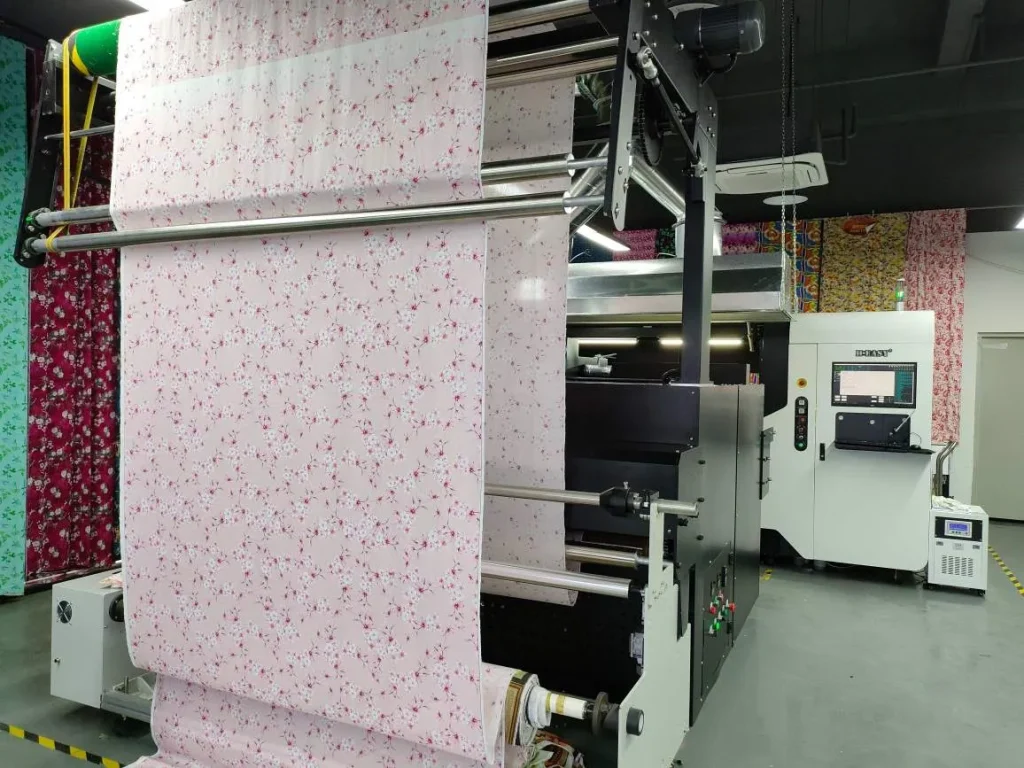

Constant-Tension Web Feed · Auto Unwinder/Take-up · High-Efficiency Drying
Closed-loop constant-tension control prevents skewing/banding and improves registration.
Automatic unwinder & take-up for long roll-to-roll jobs; stable fabric transport.
Multi-stage IR + hot-air drying; optional 3-tier offline dryer for fast fixation and low moisture.

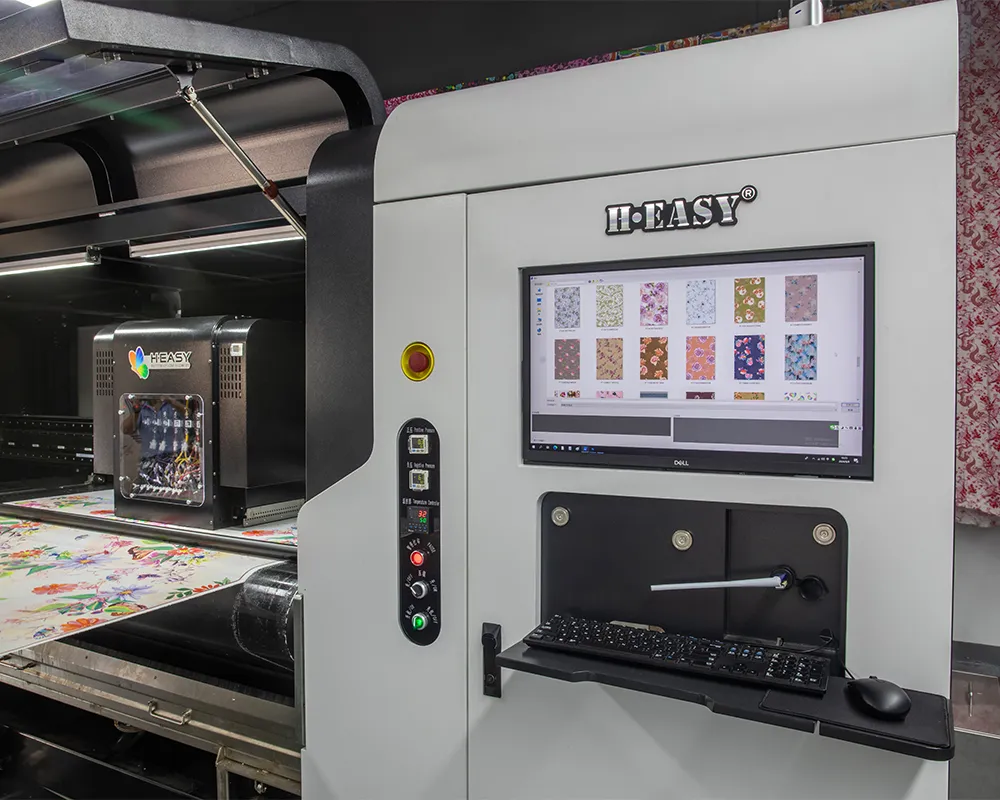

Automated Maintenance · Remote Diagnostics · Low TCO
One-click cleaning, timed negative-pressure hold, scheduled wipe & capping.
Remote status, usage logs, and alerting; fast cloud support & troubleshooting.
Standardized SOPs and preventive maintenance reduce downtime and total cost.
Application Scenarios & Effect Demonstrations
Where H·EASY H-2632 Excels
delivering high-resolution, soft-hand prints on a wide range of woven and stretch fabrics.
H·EASY Technical Support
Through cooperation with world famous print head manufacturers and software suppliers, we integrate sophisticated and practical technology into our fabric printers.
Frequently Asked Questions (FAQ)
H-Series Direct-to-Fabric Printers
Compare Ricoh Gen6 heads, effective width, max resolution, reference speed, RIP, power and machine size to pinpoint the best fit for your production.
| "Specification | H1808 | H1816 | H1824 | H1832 | H2632" |
|---|---|---|---|---|---|
Printhead | 8pcs Ricoh Gen6 | 16pcs Ricoh Gen6 | 24pcs Ricoh Gen6 | 32pcs Ricoh Gen6 | 32pcs Ricoh Gen6 |
Effective Print Width | 1800 mm | 1800 mm | 1800 mm | 1900 mm | 2600 mm |
Fabric Conveyance Mode | Adhesive belt with cleaning and heating system | Adhesive belt with cleaning and heating system | Adhesive belt with cleaning and heating system | Adhesive belt with cleaning and heating system | Adhesive belt with cleaning and heating system |
Maximum Printing Resolution | 2400 DPI | 2400 DPI | 2400 DPI | 2400 DPI | 2400 DPI |
Production Speed (reference) | Gen6 | 2-pass ≈ 170 m²/h | 3-pass ≈ 120 m²/h | Gen6 | 2-pass ≈ 330 m²/h | 3-pass ≈ 200 m²/h | Gen6 | 2-pass ≈ 450 m²/h | 3-pass ≈ 300 m²/h | 2-pass ≈ 650 m²/h | 3-pass ≈ 450 m²/h | 2-pass ≈ 650 m²/h | 3-pass ≈ 450 m²/h |
RIP Software | Neostampa / Texprint | Neostampa / Texprint | Neostampa / Texprint (origin) | Neostampa / Texprint | Neostampa / Texprint |
Printing Parts Introduction | Auto negative pressure ink supply, auto up & down of carriage, auto print head clean, auto print head capping | Auto negative pressure ink supply, auto up & down of carriage, auto print head clean, auto print head capping | Auto negative pressure ink supply, automatic car lifting, automatic positive pressure cleaning, automatic moisturizing, sprinkler anti-collision system | Auto negative pressure ink supply, auto up & down of carriage, auto print head clean, auto print head capping | Auto negative pressure ink supply, auto up & down of carriage, auto print head clean, auto print head capping |
Belt System Introduction | Auto dry & take-up system, auto belt cleaning system | Auto dry & take-up system, auto belt cleaning system | Automatic drying and winding system, automatic cleaning guide belt system, anti-pressure roller print, synchronous pressure roller | Auto belt cleaning system, anti-pressure roller printing, synchronous press roller, belt drying system, constant tension unwinding system | Auto belt cleaning system, anti-pressure roller printing, synchronous press roller, belt drying system, constant tension unwinding system |
Dryer Unit | Aluminum foil heater, infrared heater & hot wind, tunnel type room optional | Aluminum foil heater, infrared heater & hot wind, tunnel type room optional | According to the actual process | 3 tiers industry dryer with off plane | 3 tiers industry dryer with off plane |
Ink Type | Reactive / Disperse / Pigment ink (12 colors) | Reactive / Disperse / Pigment ink (12 colors) | Reactive / Acid / Pigment ink (Max support for 12 colors) | Reactive / Disperse / Acid / Pigment ink (12 colors) | Reactive / Disperse / Acid / Pigment ink (Max 12 colors) |
Interface | GBE, Optical fiber | GBE, Optical fiber | GBE, Optical fiber | Optical fiber | Optical fiber |
Print Head Height | Height adjustable 1.5–30 mm | Height adjustable 1.5–30 mm | Height adjustable 1.5–30 mm | Height adjustable 1.5–30 mm | Height adjustable 1.5–30 mm |
Power Voltage | 380V, 3L+N+G (with independent reliable effective earth wire) | 380V, 3L+N+G (with independent reliable effective earth wire) | 380V, 3L+N+G (with independent reliable effective earth wire) | 380V, 3L+N+G (with independent reliable effective earth wire) | 380V, 3L+N+G (with independent reliable effective earth wire) |
Power Frequency | 50HZ/60HZ ±1HZ | 50HZ/60HZ ±1HZ | 50HZ/60HZ ±1HZ | 50HZ/60HZ ±1HZ | 50HZ/60HZ ±1HZ |
Power Consumption | ≈ 15 kW | ≈ 17 kW | ≈ 18 kW | ≈ 30 kW | ≈ 35 kW |
Workshop Condition | Temperature: 20–30℃, Humidity: 50–65% | Temperature: 20–30℃, Humidity: 50–65% | Temperature: 20–30℃, Humidity: 50–65% | Temperature: 20–30℃, Humidity: 50–65% | Temperature: 20–30℃, Humidity: 50–65% |
Machine Size (Printer) | 2419 × 4358 × 2255 mm (W×L×H) | 2419 × 4358 × 2255 mm (W×L×H) | 4358 × 2419 × 2255 mm (L×W×H) | 5319 × 3056 × 2550 mm (L×W×H) | 5060 × 3056 × 2550 mm (L×W×H) |
Ink Cabinet | Built-in | 642 × 1710 × 885 mm (W×L×H) | 1760 × 700 × 995 mm (L×W×H) | 1760 × 700 × 995 mm (L×W×H) | 1780 × 700 × 995 mm (L×W×H) |
Fabric Feeder (Optional) | 2350 × 1050 × 1300 mm (W×L×H) | 2350 × 1050 × 1300 mm (W×L×H) | 1050 × 2350 × 1300 mm (L×W×H) | 1050 × 2350 × 1300 mm (L×W×H) | 1050 × 2350 × 1300 mm (L×W×H) |
Weight | ≈ 3580 kg | ≈ 3580 kg | ≈ 3650 kg | ≈ 5500 kg | ≈ 6500 kg |
