Introduction: Why Jersey Logos Are Moving from Flat to 3D
In the sportswear industry, logos are no longer just identification marks—they represent brand identity, team spirit, and premium value.
However, traditional decoration methods are showing clear limitations:
Embroidery: thick, less breathable, design limitations
Standard DTF: flat appearance, may crack over time
Silicone patches: require molds, high cost, long lead time
With the rapid growth of customized and small-batch production, a new solution has emerged:

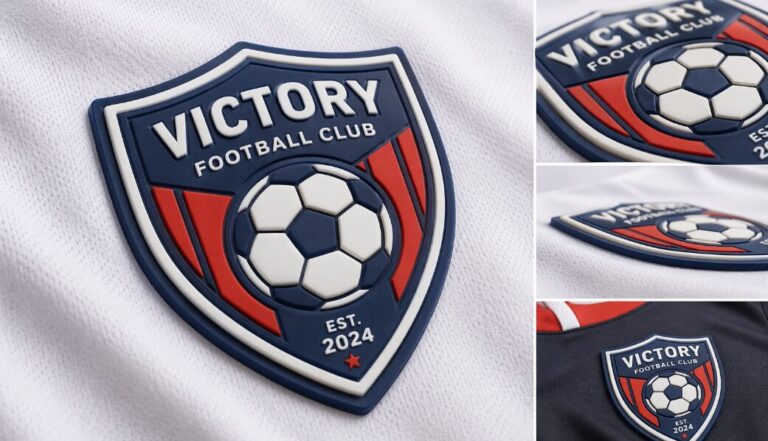

UV DTF silicone-like 3D raised patch technology (3D TPU Patch)
What is a UV DTF Silicone-Like 3D Raised Patch?
A UV DTF silicone-like raised patch is a digital fabrication method based on TPU film and UV multi-layer printing technology.
The core principle:
- Multiple layers of white ink build height
- Color inks form design details
- Varnish layers create texture and 3D effect
The result is a logo with:
- Embossed 3D structure
- Smooth silicone-like surface
- Flexible and lightweight feel
Industrial Production Solution: HY-702 UV DTF Printer
To move from sampling to mass production, stable industrial equipment is essential.
Recommended solution:
Why H·EASY HY-702 matters in this process:
- 65cm wide format output for high efficiency production
- Stable multi-layer UV + varnish stacking capability
- Roll-to-roll continuous printing for mass orders
- Industrial-grade consistency for TPU/PET transfer systems
In simple terms:
H·EASY HY-702 transforms UV DTF silicone-like 3D patches from sample production into scalable manufacturing.
Complete UV DTF Silicone-Like Patch Production Workflow
1. Design Preparation: Engineering for 3D Effect
Design is not only visual—it defines production quality:
- Use vector files (AI/PDF)
- Thick and clean shapes
- Rounded edges for silicone-like appearance
- Layer planning (white / color / varnish separation)
2. UV Printing: Layered Ink Build-Up (Core Process)
On TPU/PET film, printing is performed in layers:
Printing sequence:
- White ink (base & height building)
- Color ink (design formation)
- Varnish (3D texture & gloss effect)
Key factor:
White ink stacking level directly determines emboss height.
3. UV Curing: Layer-by-Layer Solidification
Each printed layer is instantly cured:
- Enables real-time stacking
- Maintains structural stability
- Ensures precise 3D formation
This behaves like a 2.5D digital embossing system
4. Contour Cutting: Shape Customization
After printing:
- Use contour cutting plotter
- Cut each logo precisely
- Support complex shapes and badges
Advantage: full design freedom
5. Heat Press Transfer to Jersey
Transfer process:
Recommended parameters:
- Temperature: 150–160°C
- Time: ~10 seconds
Result:
- TPU adhesive layer activates
- Strong bonding with fabric
- Maintains softness and flexibility
Final Result: Why Brands Choose It
Final product features:
- Strong 3D embossed effect
- Silicone-like visual & tactile feel
- Flexible and lightweight structure
- High wash durability (50+ washes in testing scenarios)
Comparison with Traditional Techniques
| Method | 3D Effect | Cost | Flexibility | Customization |
|---|---|---|---|---|
| Embroidery | ⭐⭐⭐ | High | Low | ❌ |
| Standard DTF | ⭐ | Low | High | ✅ |
| Silicone Patch | ⭐⭐⭐⭐⭐ | High | Low | ❌ |
| UV DTF Silicone-Like | ⭐⭐⭐⭐ | Medium | ⭐⭐⭐⭐⭐ | ✅ |
UV DTF bridges the gap between:
premium silicone appearance + digital printing flexibility
Why It Is Becoming the Mainstream Solution
- Meets demand for premium sports branding
- Supports fast turnaround & small batch production
- Enables complex designs and gradients
- Higher production efficiency than mold-based silicone
Additionally:
- High-resolution detailing
- Strong abrasion resistance
Conclusion: From Flat Printing to Structural Branding
UV DTF silicone-like 3D raised patches represent a shift from 2D decoration to structural branding expression.
For apparel brands, factories, and custom product businesses, this means:
- Higher product value
- Stronger differentiation
- Greater production flexibility
Get a Complete Solution
We provide:
- UV DTF printing systems (including HY-702 industrial model)
- TPU/PET film & ink solutions
- Silicone-like 3D patch sample support
- Full production workflow consulting
Contact us to start your 3D jersey customization business.
