HY-7590
A 75 × 90 cm UV flatbed for rigid media, thick objects and optional CCD visual positioning.
The HY-7590 is a 750 × 900 mm UV flatbed printer for buyers whose fabric printing business also decorates rigid media and placed objects up to 150 mm thick. With two to five industrial printheads and Color, White and Varnish options, it serves manufacturers printing glass, acrylic, wood, ceramic, metal, PVC and leather.
HY-7590 UV flatbed overview
The HY-7590 is a 750 × 900 mm industrial UV flatbed for direct printing on rigid sheets and placed objects up to 150 mm thick. Available Ricoh, Epson and Toshiba printhead configurations support color, white and varnish workflows, while automatic height detection and carriage anti-collision help protect production across mixed object heights.
The optional CCD visual system is intended for accurate object positioning, with the supplied manufacturer brochure listing accuracy below 0.01 mm. For transfer-based decoration rather than direct flatbed printing, compare the compact HY-401 30 cm UV-DTF printer. See application examples before sending the target substrate for an adhesion and output test.
Factory-direct production support
Configuration, onboarding and after-sales guidance are coordinated by the manufacturer team in Shenzhen.
From clear acrylic to layered UV color
The same acrylic panel and camera angle compare the undecorated substrate with the finished white-and-color UV print.

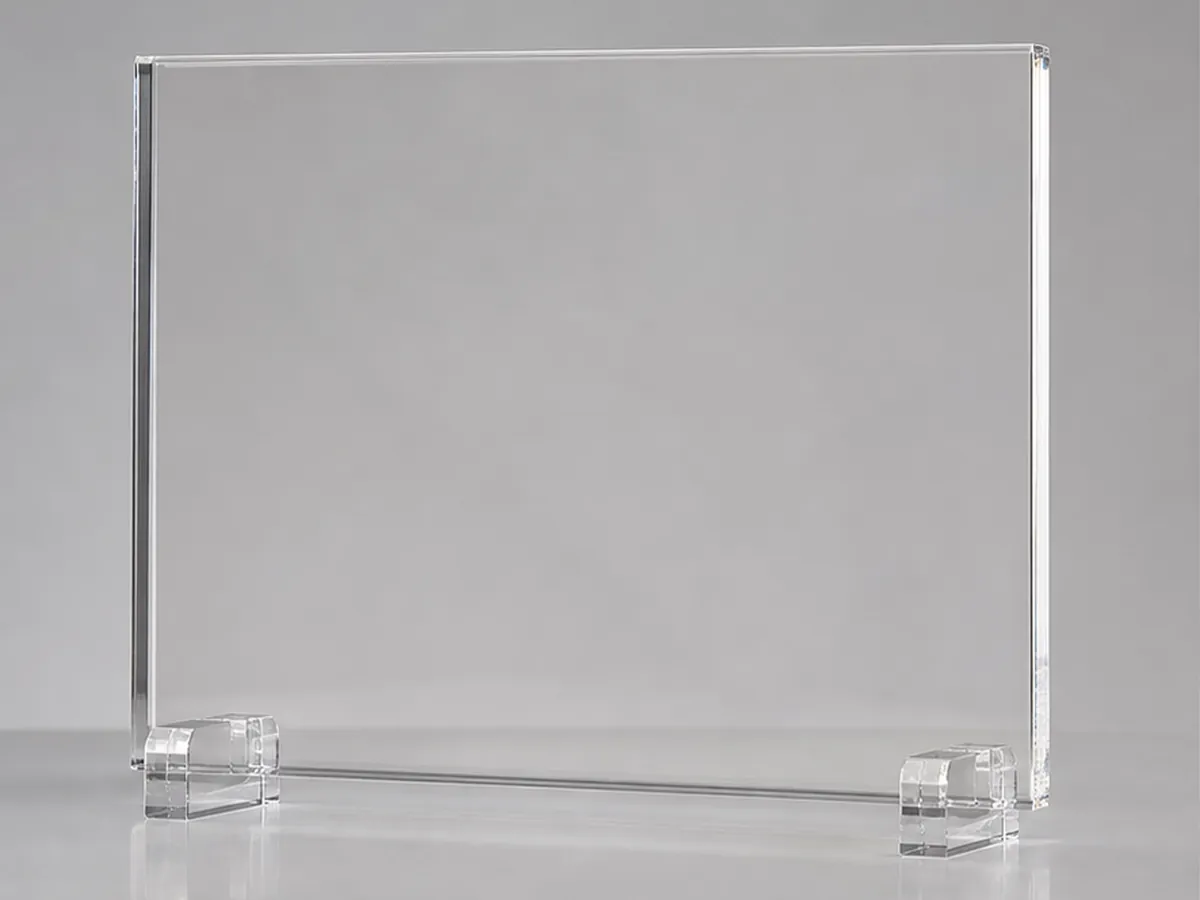

Clear acrylic
The clean transparent panel establishes the rigid-media baseline.

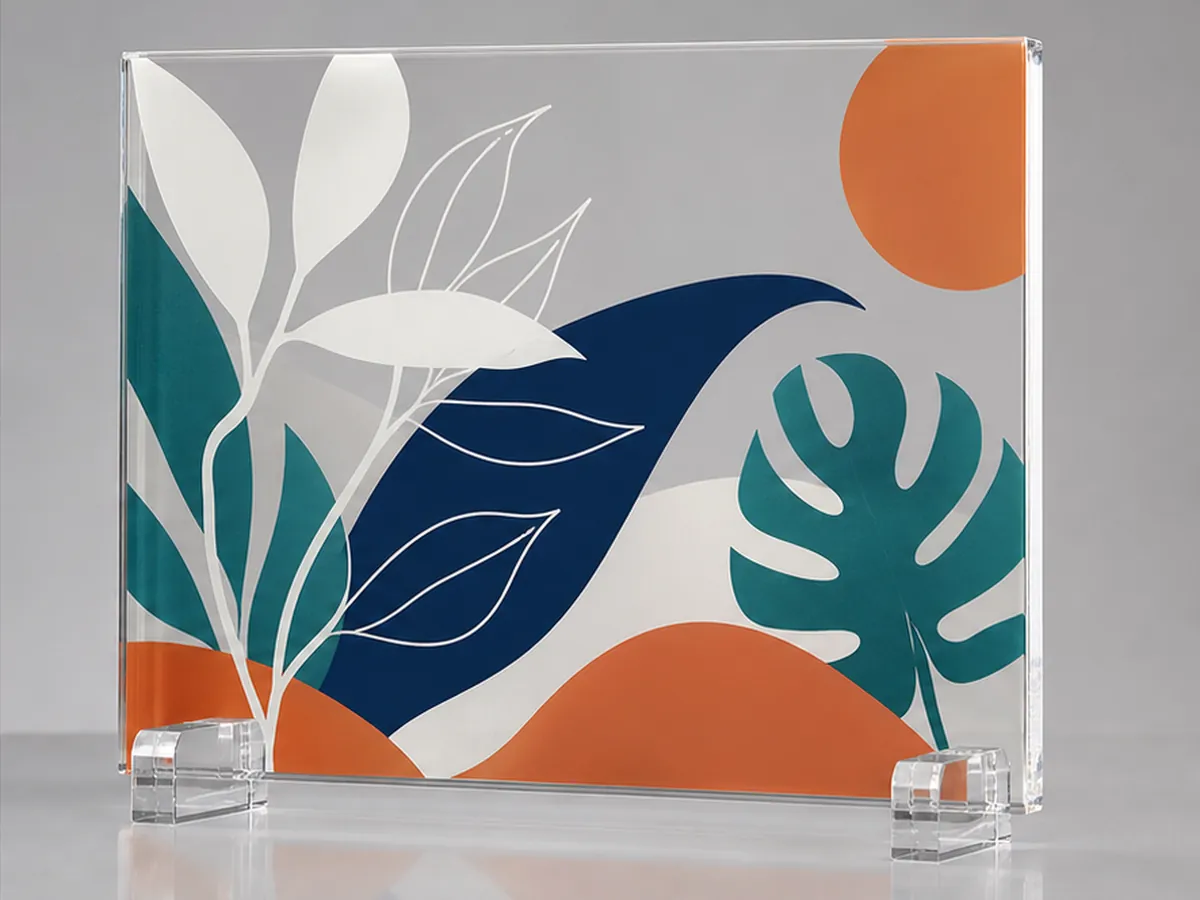

Finished UV print
The matched view visualizes opaque color built with white and color layers on acrylic.
Where this system fits production

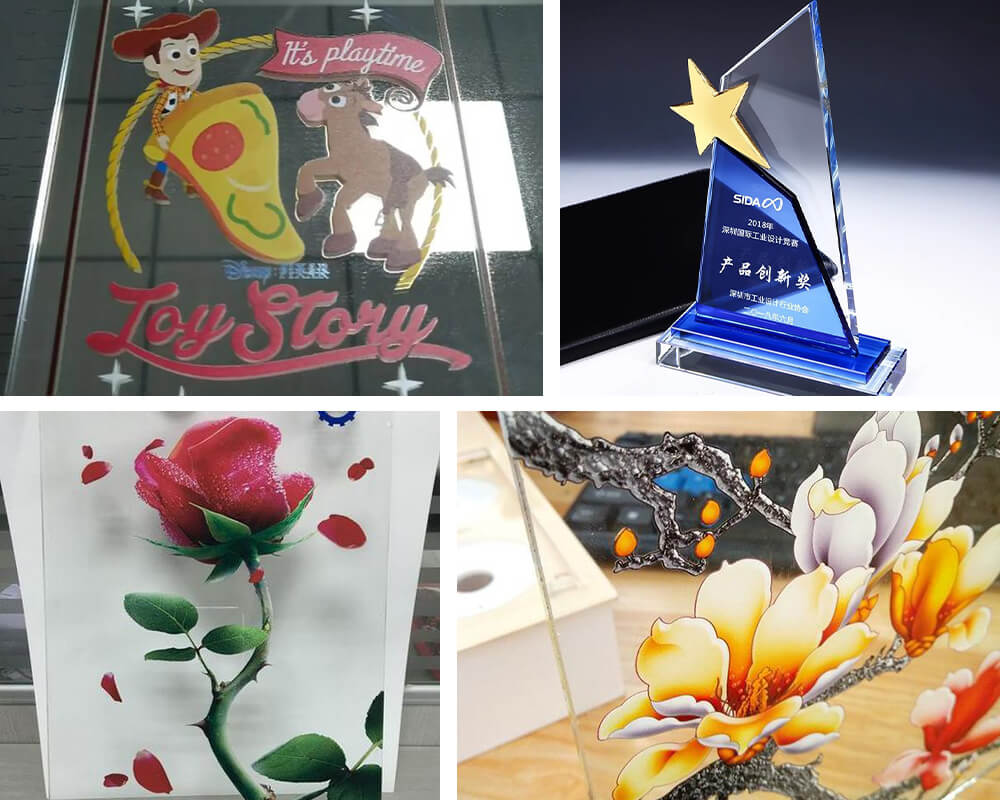

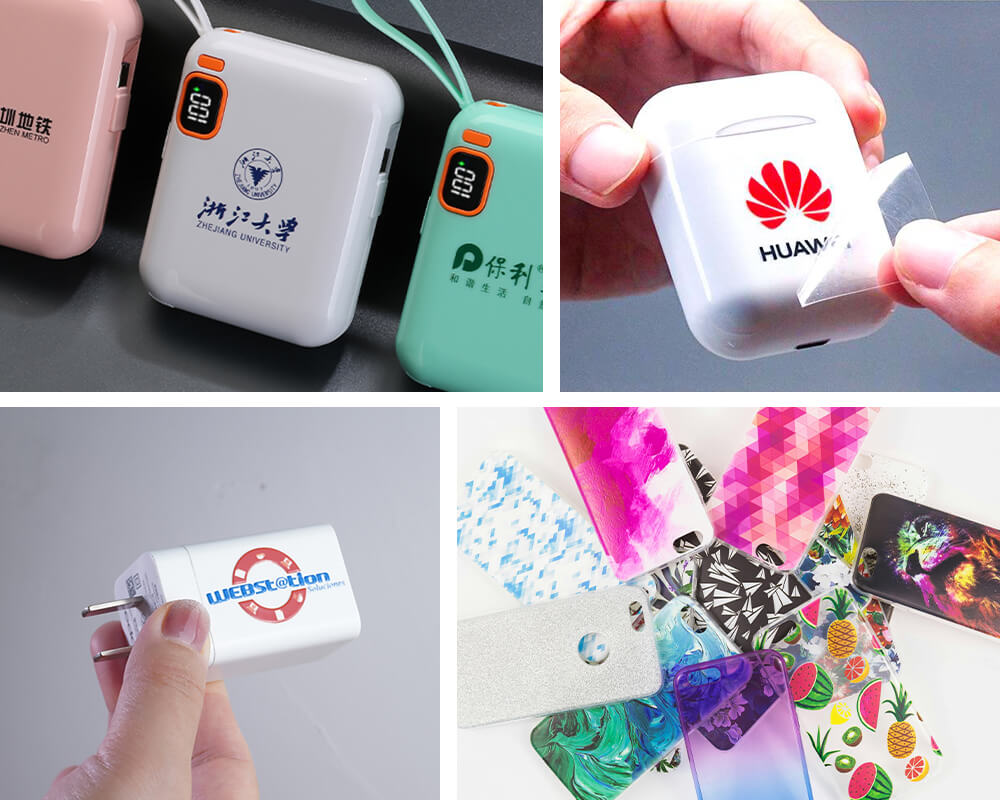

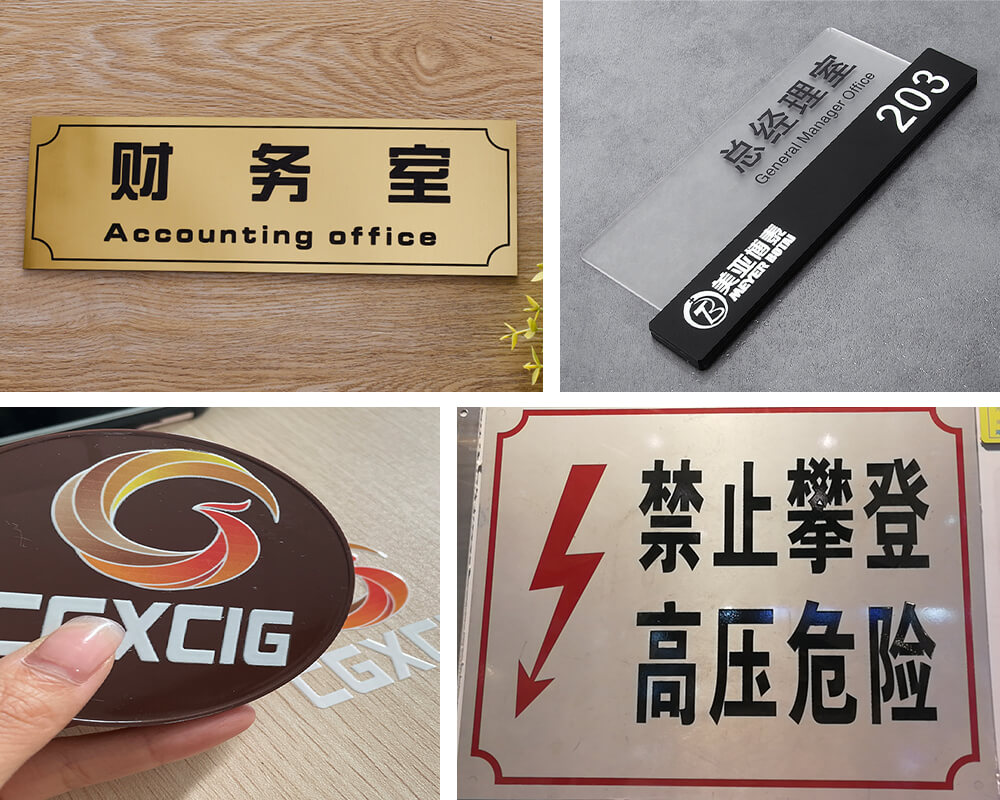

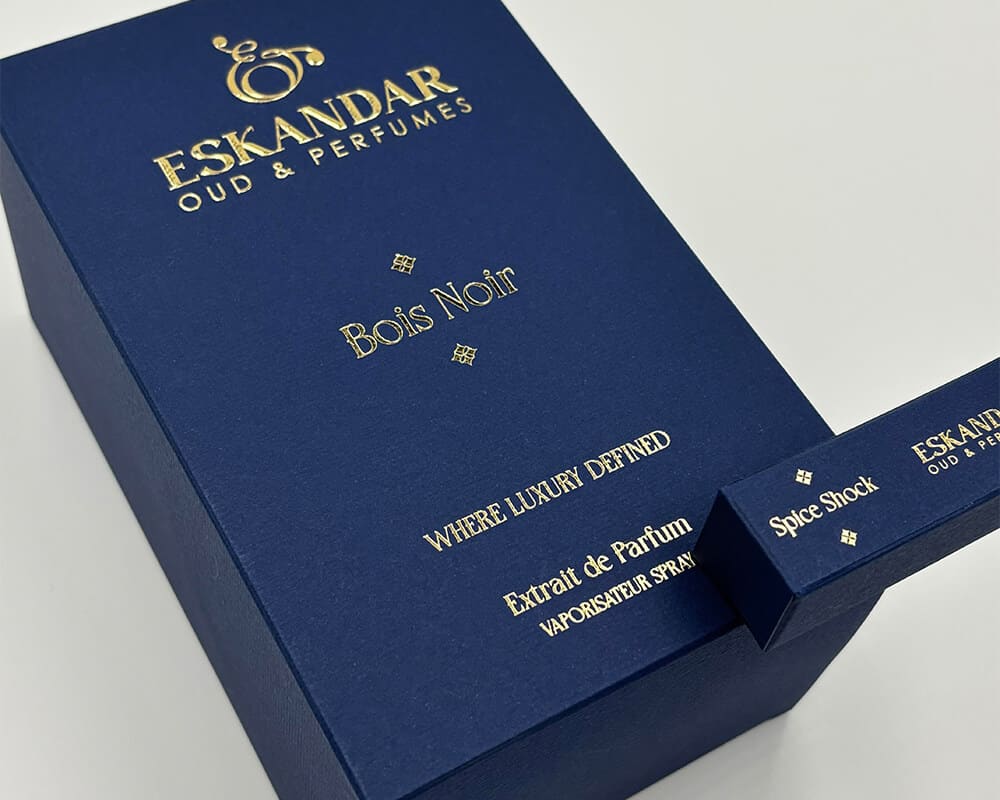

Direct UV decoration for rigid display, device, packaging and promotional surfaces.
Plan the complete configuration
Published values for HY-7590 UV Flatbed Printer. Confirm the final ink set, workflow equipment and shipping configuration on quotation.
Core configuration
- Print area
- 750 × 900 mm
- Printheads
- Ricoh Gen6 / Gen5: 2–5 · Epson T3200: 2–4 · Ricoh Gen5S: 2–5 · Toshiba CE4: 2–5
- Print mode
- 4-color or 6-color, with White + Varnish options
- Speed (Ricoh Gen6 / Gen5 or Epson T3200)
- 4-pass 15 m²/h · 6-pass 11 m²/h · 8-pass 8 m²/h
- Speed (Ricoh Gen5S)
- 4-pass 13 m²/h · 6-pass 9 m²/h · 8-pass 6 m²/h
- Speed (Toshiba CE4)
- 4-pass 9 m²/h · 6-pass 7 m²/h · 8-pass 5 m²/h
Performance and workflow
- Resolution
- 720 × 1200 dpi with Ricoh Gen6 / Gen5 or Epson T3200 · 705 × 1800 dpi with Ricoh Gen5S or Toshiba CE4
- Media thickness / head lift
- Up to 150 mm
- Ink
- LED UV curing ink · optional White, Varnish, Primer and bright-gold effect
- CCD visual system
- Optional · positioning accuracy below 0.01 mm
- Media
- Glass, acrylic, wood, ceramic, metal, PVC, foam board, 3C products and leather
- RIP software
- PP / Ruiyin
Installation and planning
- Connectivity
- Gigabit Ethernet · USB 3.0
- Power
- AC 220 V ±10% · single phase · 50/60 Hz · 2.5 kW
- Machine size / net weight
- 2.4 × 1.8 × 1.4 m · 450 kg
- Packing size / gross weight
- 2.5 × 1.96 × 1.0 m · 550 kg
- Operating environment
- 20–25 °C · 50–60% RH, non-condensing · clean, low-dust and well-ventilated
Support continues after installation
One-year warranty
Standard 12-month coverage on the core machine, with optional extended care confirmed on quotation.
Installation and onboarding
Setup, calibration and first-print guidance through documented video and PDF procedures.
Troubleshooting library
Practical checks for routine operation, maintenance and common production interruptions.
Remote engineer guidance
Real-time diagnosis and tuning support through video call and approved remote-access tools.
